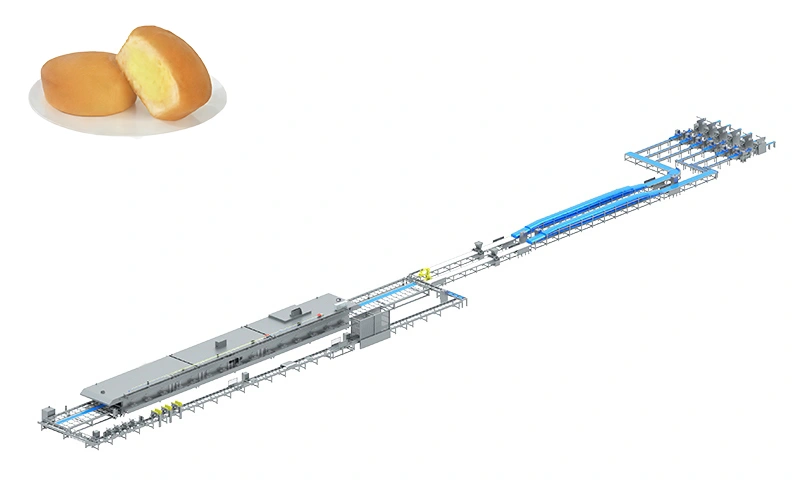

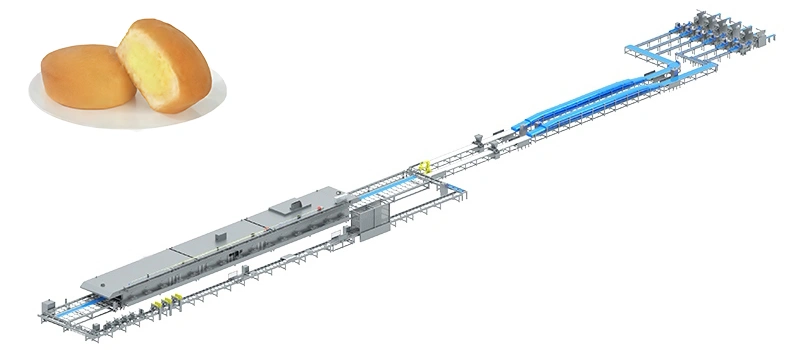

Automatic Cupcake Production Line
T-Shine automatic cupcake production line is a complete, integrated system that handles forming, baking, depanning, and cooling. It utilizes precise temperature control and fully automated process management to ensure uniform texture and consistent, high-quality output.
Designed for versatility, the line can produce a wide range of cakes, including sponge, chiffon, and mousse cakes. It is ideally suited for high-volume production in food manufacturing plants and large-scale bakeries. The system offers user-friendly operation, delivers high throughput with minimal manual labor, and is constructed to meet all relevant food safety standards. This line is a key solution for modern baking businesses seeking to enhance both production capacity and end-product quality.
Features
- Multiple baking modes are available, each mode optimized for different cake production characteristics
- Features an optimized structure for fast, efficient cleaning and maintenance
- Customizable configurations available with production capacities ranging from 0.5 to 2 tons per hour
- Compatible with various in-line filling methods, including top filling, side filling, and tray-based filling systems

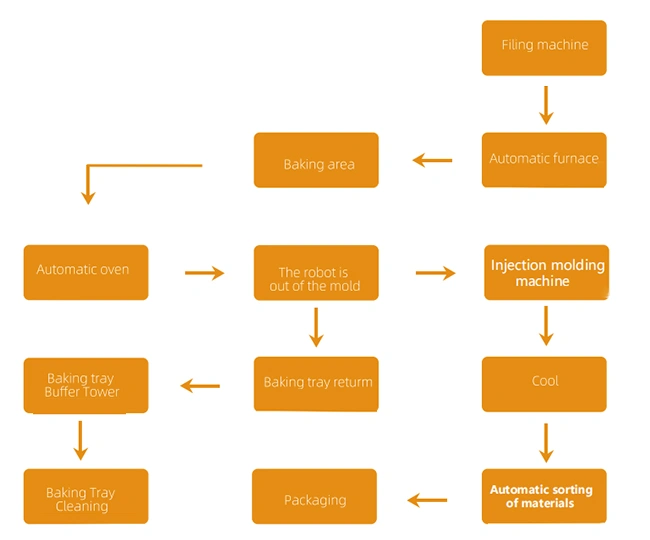

Process Flow

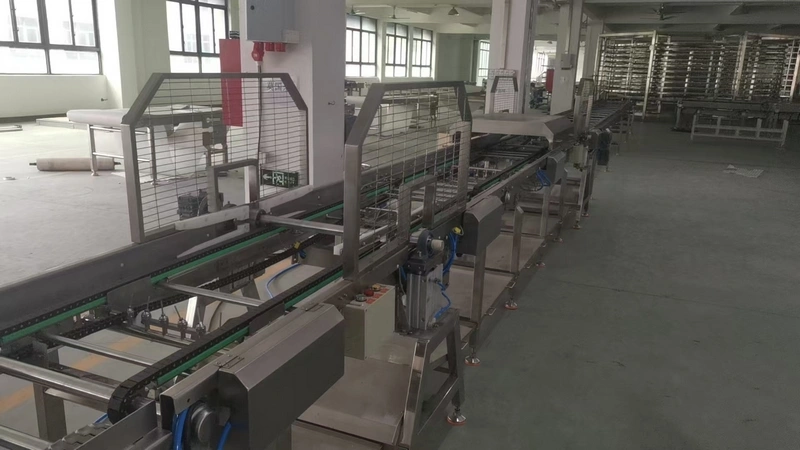

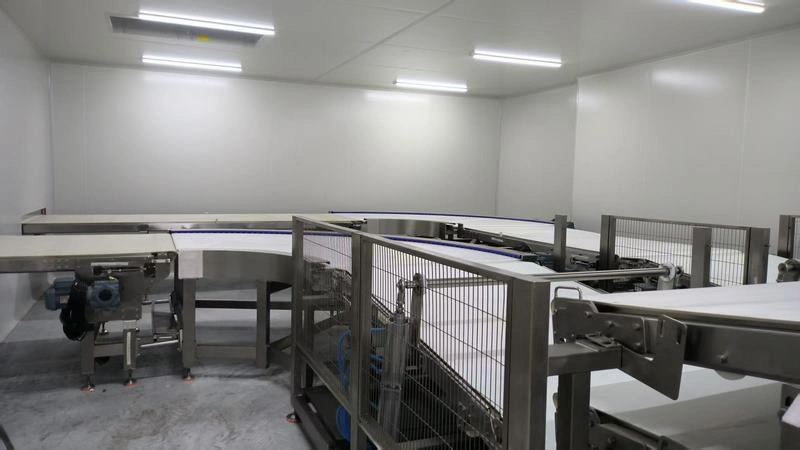

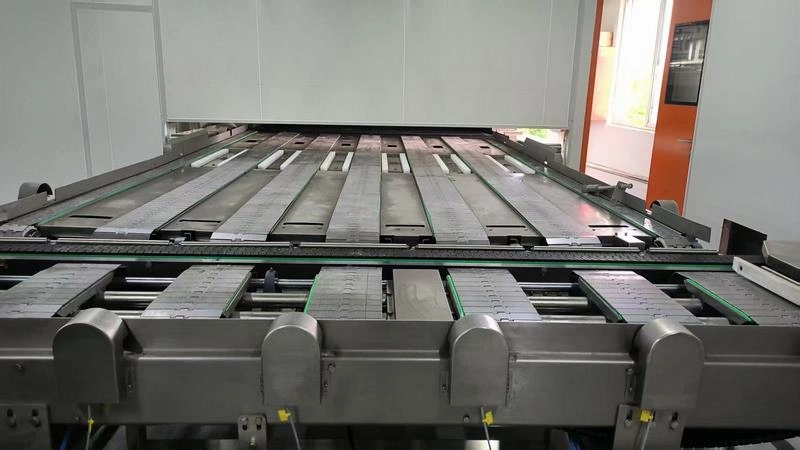

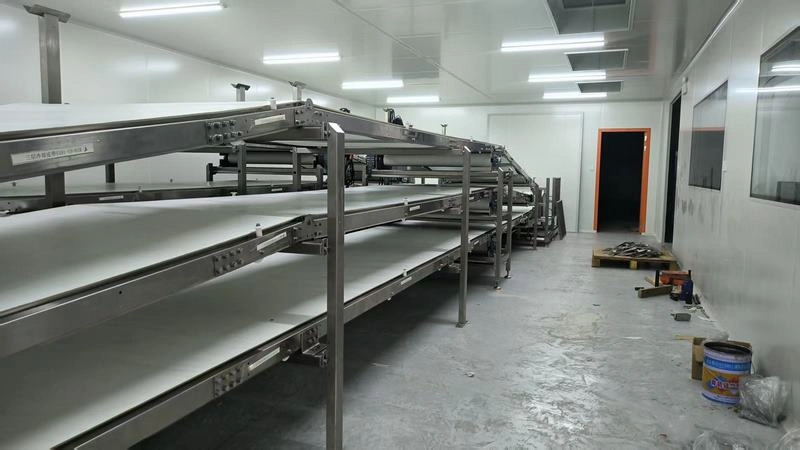

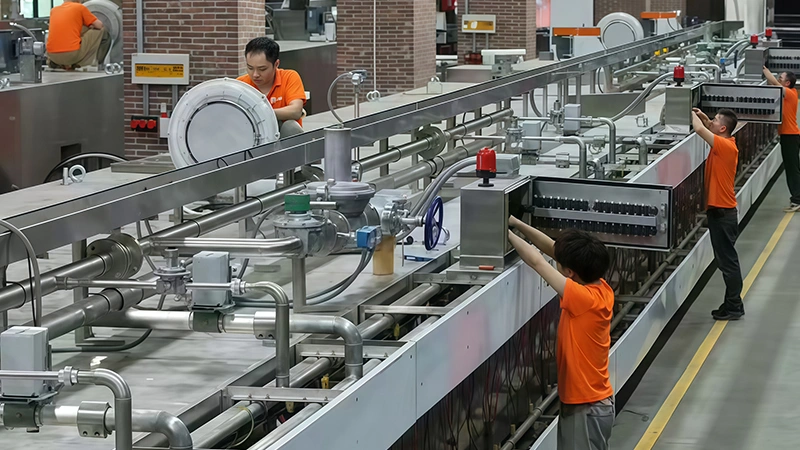

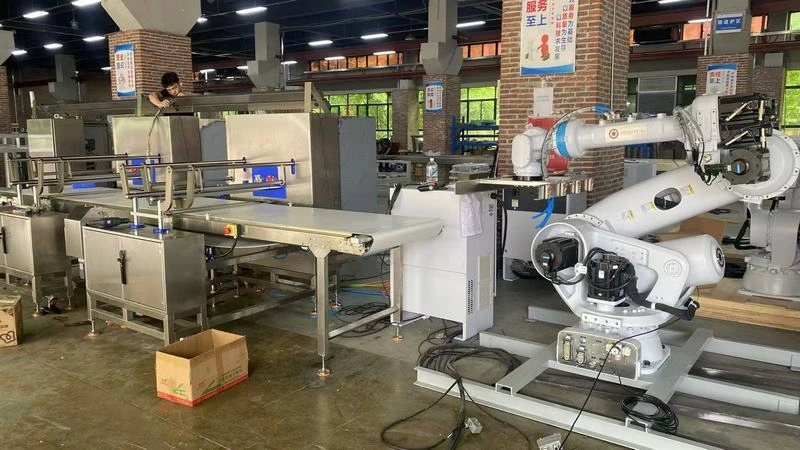

Main Components
Specifications
| Product Name | Cupcake Production Line |
| Hourly Output (by weight) | 1.5 tons |
| Hourly Output (50g per piece) | 13,700 pcs |
| Baking Time | 36 minutes (customizable) |
| Cooling Time | 54 minutes (belt cooling) |
| Oven Inner Width | 2,650 mm |
| Effective Baking Length | 36 m |
| Conveyor Belt Width | 1,260 mm |
| Filling Diameter Range | ∅86–∅90 mm (customizable) |
| Filling Thickness | 20 mm |
| Power | 25 kW |
| Oven Type | Proportional gas-fired |
| Overall Line Dimensions (L×W×H) | 39×3.7×2.2 m |

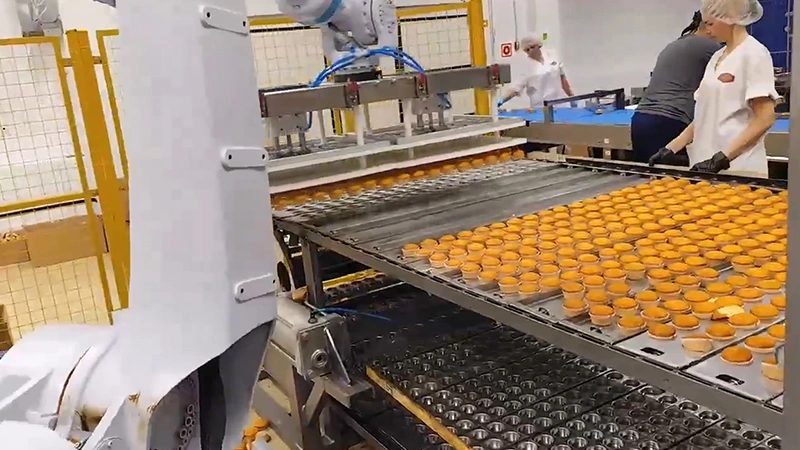

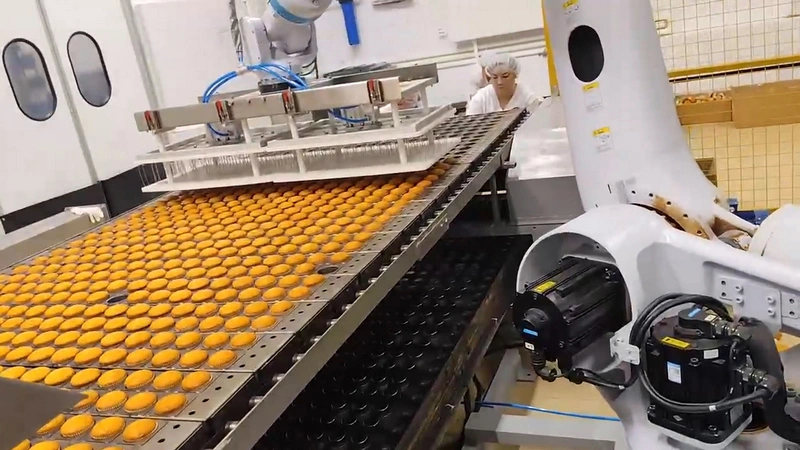

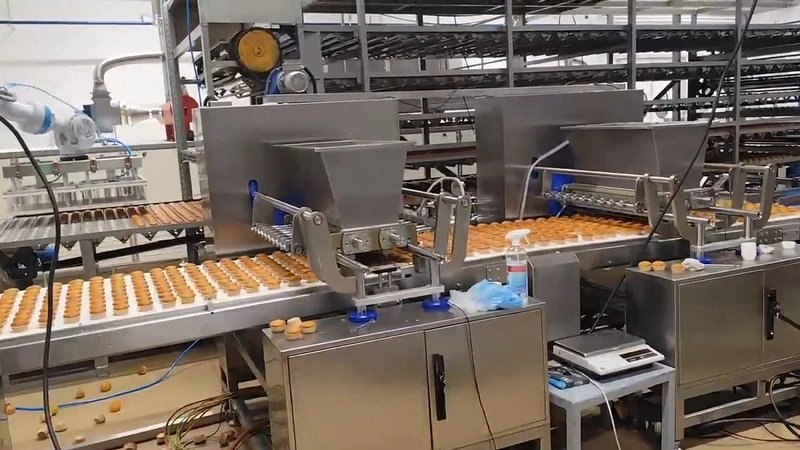

Applications
