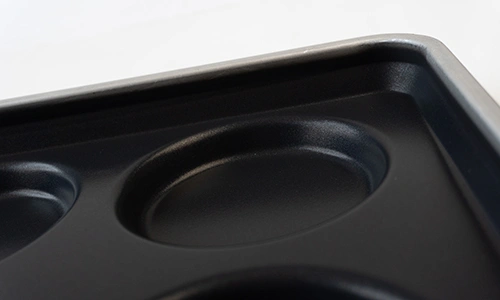

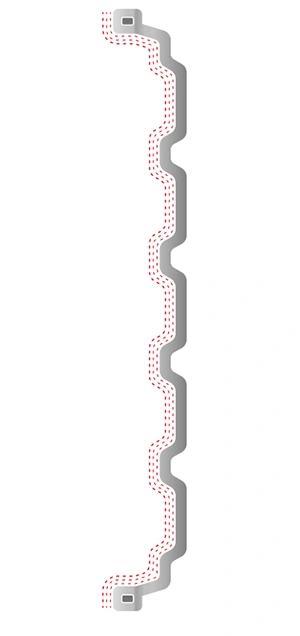

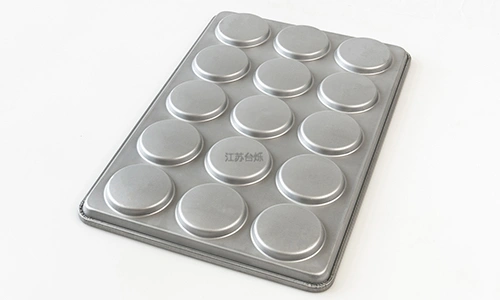

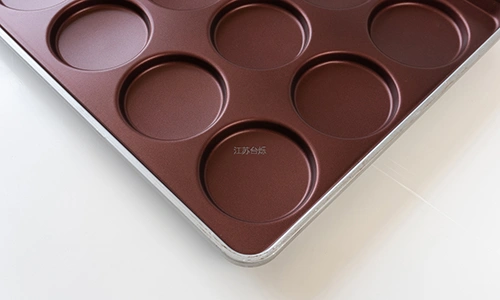

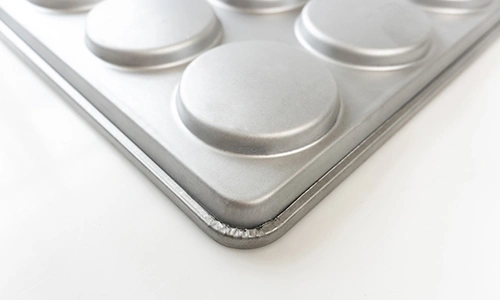

Constructed from aluminized steel through a one-piece deep drawing process, the baking pan features a seamless, easy-clean surface with no corners. The bun molds have a smooth, curved bottom (with optional arc profiles) to maximize contact area, ensuring baked buns are flat, uniformly shaped, and resistant to deformation. High-performance Non-stick coating options are available, including high-performance PFA (approx. 3,000 cycles) and cost-effective Teflon (approx. 1,500 cycles), to ensure excellent food release and superior finished appearance.

Please confirm the following parameters for your custom strap loaf pan set:

• Consistent Quality: Industrial-grade manufacturing ensures a high standardization and uniformity
• High Efficiency: Fully compatible with automated systems, significantly reducing labor requirements
• Tailored Solution: Customizable in size, shape, and material to fit specific production needs.
• Superior Hygiene: The seamless, one-piece construction eliminates gaps where residue can collect, enhancing food safety
• Quality Non-stick Coating: Multiple coating options supported by our in-house coating line to ensure consistent, high-performance Non-stick properties

Hamburger Bun Pan

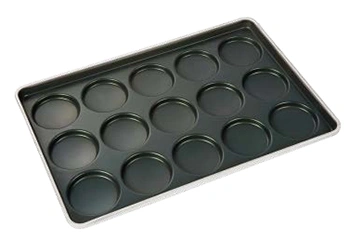

3.5'' Hamburger Bun Pan

• Model: TS1602
• Surface Treatment: PTFE
• Dimensions (L×W×H): 600×400×40 mm
• No. of Molds: 15
• Materials: Al-steel
• Shape: Flat
• Thichness: δ0.8 mm

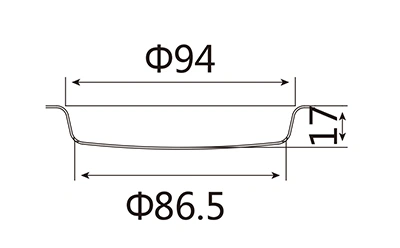

• Size Diagram (Top Dia./Bottom Dia./Height):


3.5'' Hamburger Bun Pan

• Model: TS1645
• Surface Treatment: PTFE
• Dimensions (L×W×H): 600×400×40 mm
• No. of Molds: 15
• Materials: Al-steel
• Shape: Convex
• Thichness: δ0.8 mm
• Size Diagram (Top Dia./Bottom Dia./Height):

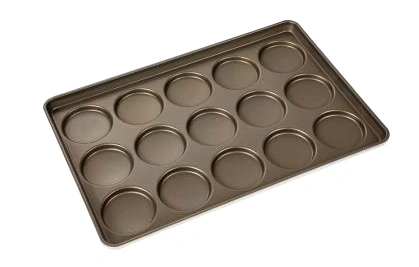

4'' Hamburger Bun Pan

• Model: TS1604
• Surface Treatment: PTFE
• Dimensions (L×W×H): 600×400×40 mm
• No. of Molds: 15
• Materials: Al-steel
• Shape: Convex
• Thichness: δ0.8 mm
• Size Diagram (Top Dia./Bottom Dia./Height):

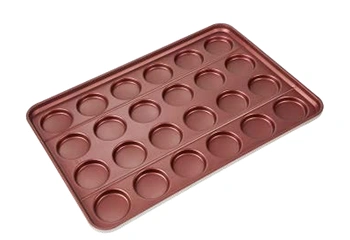

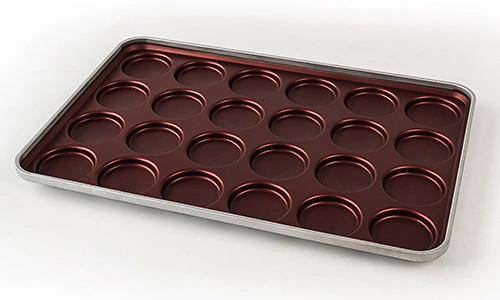

3.5'' Hamburger Bun Pan

• Model: TS1621
• Surface Treatment: PTFE
• Dimensions (L×W×H): 738×503×43 mm
• No. of Molds: 24
• Materials: Al-steel
• Shape: Convex
• Thichness: δ0.8 mm
• Size Diagram (Top Dia./Bottom Dia./Height):

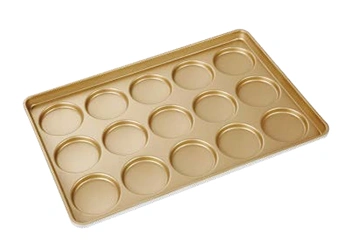

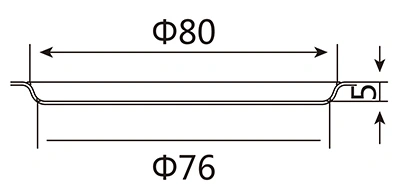

3'' Hamburger Bun Pan

• Model: TS1608
• Surface Treatment: PTFE
• Dimensions (L×W×H): 600×400×35 mm
• No. of Molds: 15
• Materials: Al-steel
• Shape: Flat
• Thichness: δ0.8 mm
• Size Diagram (Top Dia./Bottom Dia./Height):

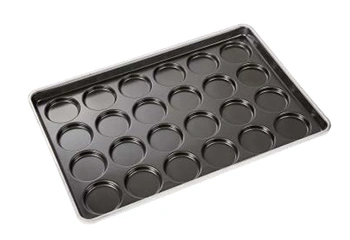

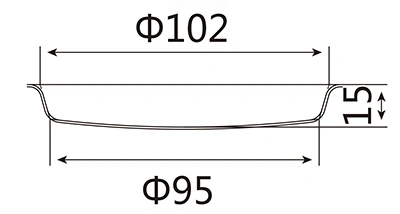

4'' Hamburger Bun Pan

• Model: DZ141067
• Surface Treatment: PTFE
• Dimensions (L×W×H): 738×503×43 mm
• No. of Molds: 24
• Materials: Al-steel
• Shape: Convex
• Thichness: δ0.8 mm
• Size Diagram (Top Dia./Bottom Dia./Height):

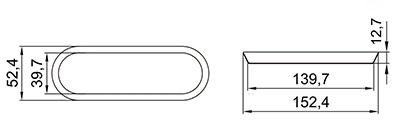

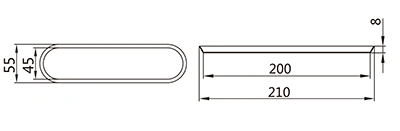

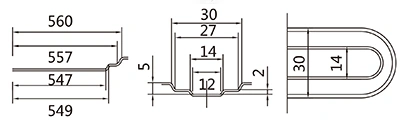

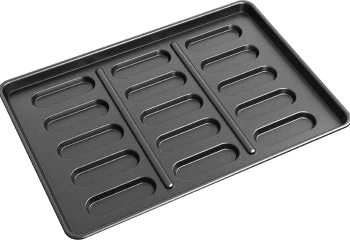

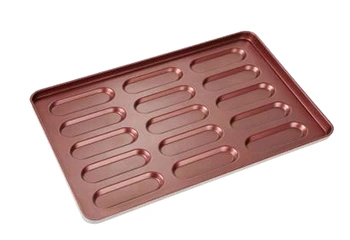

Roll Bun Pans

Band In Rim

• Model: TS1606
• Surface Treatment: PTFE
• Dimensions (L×W×H): 600×400×30 mm
• No. of Molds: 15
• Materials: Al-steel
• Shape: Convex
• Thichness: δ0.8 mm
• Size Diagram (Top Dia./Bottom Dia./Height):


• Model: TS1610
• Surface Treatment: PTFE
• Dimensions (L×W×H): 600×400×45 mm
• No. of Molds: 6
• Materials: Al-steel
• Thichness: δ0.8 mm
• Size Diagram (Top Dia./Bottom Dia./Height):


• Model: TS12211073
• Surface Treatment: PTFE
• Dimensions (L×W×H): 530×380×30 mm
• No. of Molds: 8
• Materials: Al-steel
• Thichness: δ0.7 mm
• Size Diagram (Top Dia./Bottom Dia./Height):


• Model: TS1616
• Surface Treatment: PTFE
• Dimensions (L×W×H): 600×400×45 mm
• No. of Molds: 12
• Materials: Al-steel
• Thichness: δ0.8 mm
• Size Diagram (Top Dia./Bottom Dia./Height):

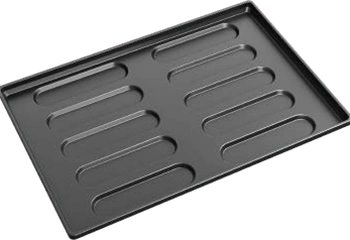

• Model: TS1614
• Surface Treatment: PTFE
• Dimensions (L×W×H): 600×400×33 mm
• No. of Molds: 10
• Materials: Al-steel
• Thichness: δ0.8 mm

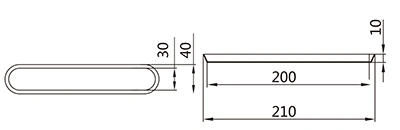

• Size Diagram (Top Dia./Bottom Dia./Height):


• Model: DZ151038
• Surface Treatment: PTFE
• Dimensions (L×W×H): 660×458×37.7 mm
• No. of Molds: 15
• Materials: Al-steel
• Thichness: δ0.8 mm
• Size Diagram (Top Dia./Bottom Dia./Height):


Croissant Bun Pans

• Model: TS1618
• Surface Treatment: PTFE
• Dimensions (L×W×H): 600×400×45 mm
• No. of Molds: 16
• Materials: Al-steel
• Thichness: δ0.8 mm
• Size Diagram (Top Dia./Bottom Dia./Height):


• Model: TS1122
• Surface Treatment: PTFE
• Dimensions (L×W×H): 530×380×33 mm
• No. of Molds: 12
• Materials: Al-steel
• Thichness: δ0.8 mm
• Size Diagram (Top Dia./Bottom Dia./Height):
