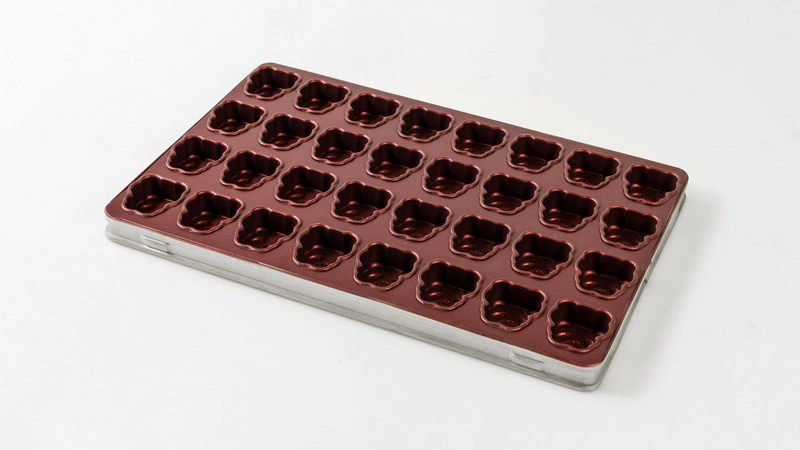

Cupcake Pan & Muffin Pan
Our cupcake and muffin pans come in various sizes, shapes, and dimensions, with flexible customization options tailored to customer requirements. In addition to standard round and rectangular options, we can manufacture custom-shaped pans, including square, rectangular, and special designs such as panda, pig, orange, and other creative shapes.

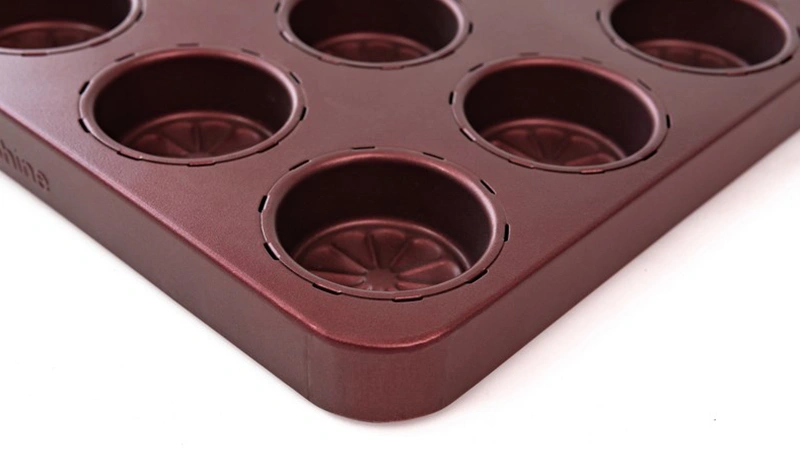

All custom-shaped cake pans feature our T-ReXL ultra Non-stick coating, which extends their lifespan by 2–3 times compared to traditional double-layer PTFE coatings. This coating also reduces the need for oil during baking, lowers production costs, and enhances the flavor and quality of the finished baked goods.

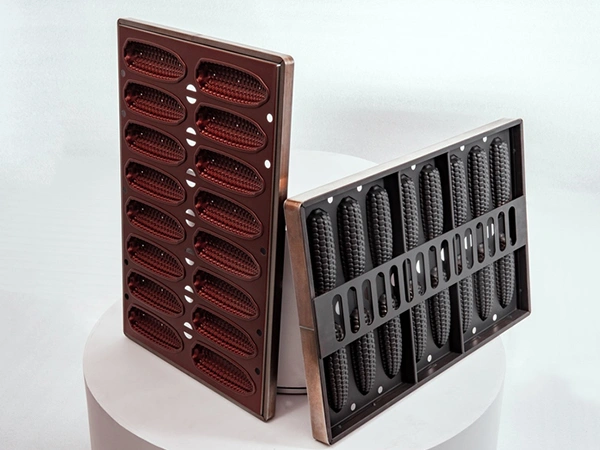

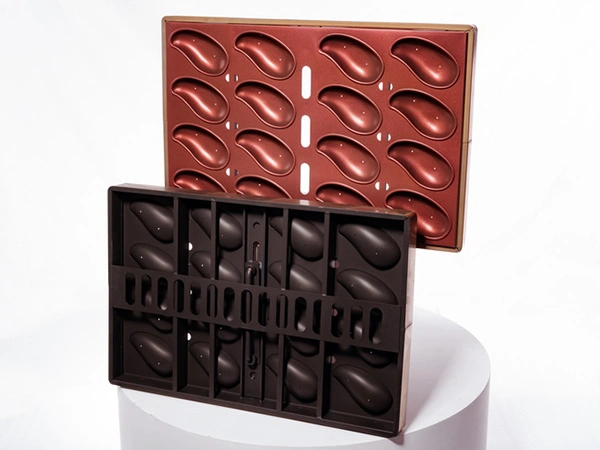

Product Sample
Specifications

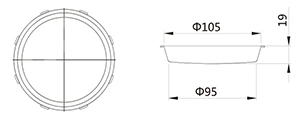

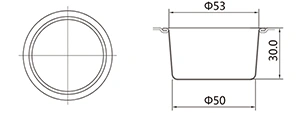

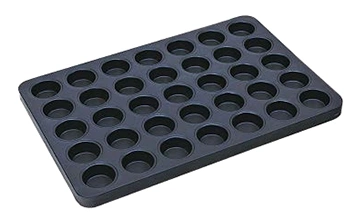

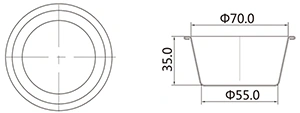

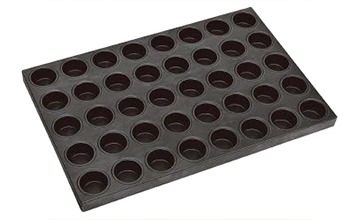

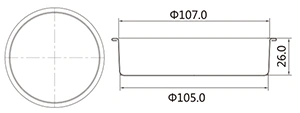

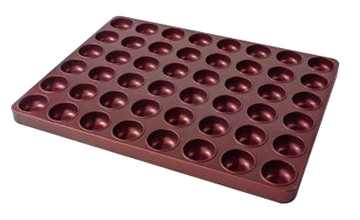

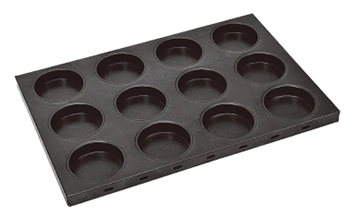

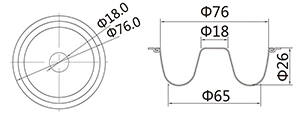

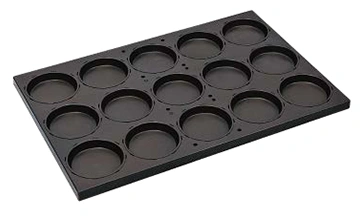

Round Cake Pan
- Model:
TS3011 - Surface Treatment: PTFE
- Material: Al-steel
- Dimensions: 600×400 mm
- Thickness: δ0.8 mm
- Special Design: 40 cups
- Model:
TS3019 - Surface Treatment: PTFE
- Material: Al-steel
- Dimensions (L×W×H): 600×400×30 mm
- Thickness: δ0.8 mm
- Special Design: 35 cups
- Model:
TS3013 - Surface Treatment: PTFE
- Material: Al-steel
- Dimensions (L×W×H): 600×400×30 mm
- Thickness: δ1.0 mm
- Special Design: 12 cups
- Model:
TS31313 - Surface Treatment: PTFE
- Material: Al-steel
- Dimensions (L×W×H): 800×600×40 mm
- Thickness: δ0.8 mm
- Special Design: 48 cups
- Model:
TS3018 - Surface Treatment: PTFE
- Material: Al-steel
- Dimensions (L×W×H): 600×400×23.4 mm
- Thickness: δ1.0 mm
- Special Design: 15 cups

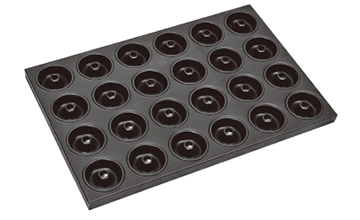

Donuts Pan
- Model:
TS3009 - Surface Treatment: PTFE
- Material: Al-steel
- Dimensions (L×W×H): 600×400×30 mm
- Thickness: δ1.0 mm
- Special Design: 24 cups

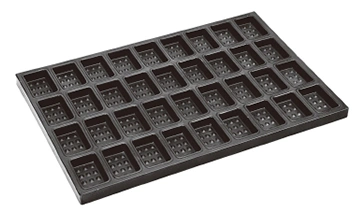

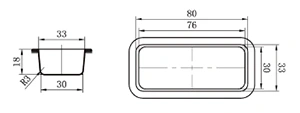

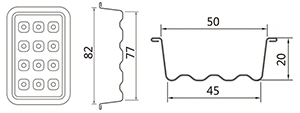

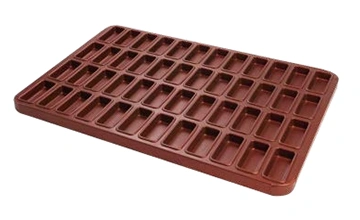

Rectangle Cake Pan
- Model:
TS3014 - Surface Treatment: PTFE
- Material: Al-steel
- Dimensions (L×W×H): 600×400×28 mm
- Thickness: δ1.0 mm
- Special Design: 36 cups
- Model:
TS31359 - Surface Treatment: PTFE
- Material: Al-steel
- Dimensions (L×W×H): 600×400×25 mm
- Thickness: δ0.8 mm
- Special Design: 48 cups

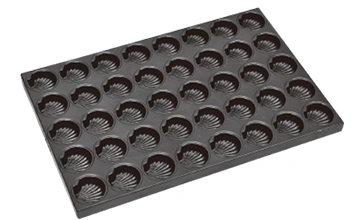

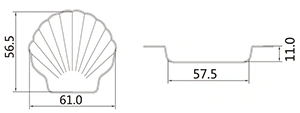

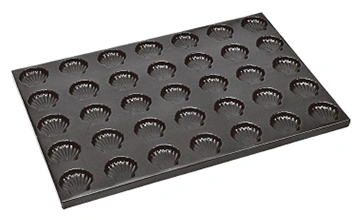

Shell Cake Pan
- Model:
TS3005 - Surface Treatment: Silicon
- Material: Al-steel
- Dimensions (L×W×H): 600×400×20 mm
- Thickness: δ0.8 mm
- Special Design: 35 cups (drawn)
- Model:
TS3008 - Surface Treatment: PTFE
- Material: Al-steel
- Dimensions (L×W×H): 600×400×27 mm
- Thickness: δ1.0 mm
- Special Design: 40 cups (deep)
Oblong Cake Pan
- Model:
TS3205 - Surface Treatment: PTFE
- Material: Al-steel
- Dimensions (L×W×H): 720×400×25 mm
- Thickness: δ0.8 mm
- Special Design: 48 cups

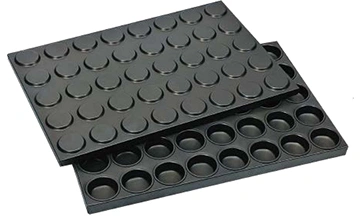

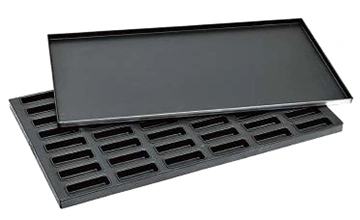

Meat Floss Cake Pan with Lid
- Model:
TS3001 - Surface Treatment: PTFE
- Material: Al-steel
- Dimensions (L×W×H): 600×400×32 mm
- Thickness: δ0.6 mm
- Special Design: 40 cups

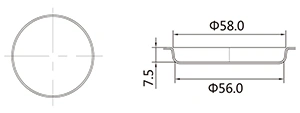

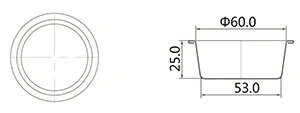

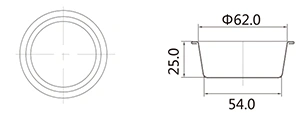

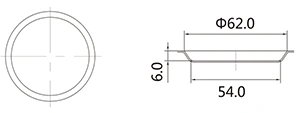

- Size Diagram:
- Model:
TS3003 - Surface Treatment: PTFE
- Material: Al-steel
- Dimensions (L×W×H): 600×400×32 mm
- Thickness: δ1.0 mm
- Special Design: 40 cups
- Size Diagram:
- Model:
TS3001-G - Surface Treatment: PTFE
- Material: Al-steel
- Dimensions (L×W×H): 600×400×26 mm
- Thickness: δ0.6 mm
- Special Design: 40 cups
- Size Diagram:
- Model:
TS3003-G - Surface Treatment: PTFE
- Material: Al-steel
- Dimensions (L×W×H): 600×400×28 mm
- Thickness: δ1.0 mm
- Special Design: 40 cups
- Size Diagram:

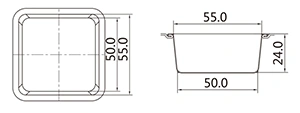

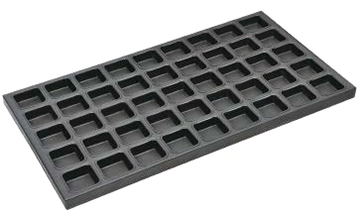

Square Cake Pan
- Model:
TS3203 - Surface Treatment: PTFE
- Material: Al-steel
- Dimensions (L×W×H): 720×400×33 mm
- Thickness: δ0.8 mm
- Special Design: 45 cups

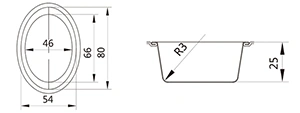

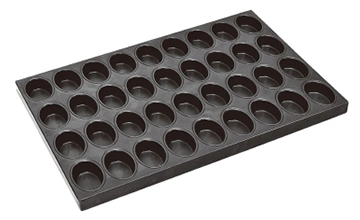

Oval Cake Pan
- Model:
TS3023 - Surface Treatment: PTFE
- Material: Al-steel
- Dimensions (L×W×H): 600×400×30 mm
- Thickness: δ0.8 mm
- Special Design: 36 cups
Specially Shaped Cake Pan

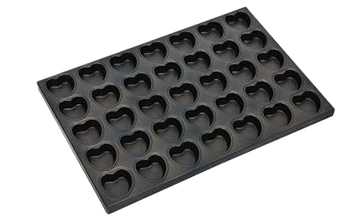

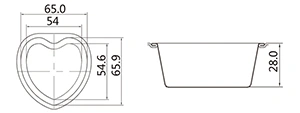

Heart-Shape Cake Pan
- Model:
TS3010 - Surface Treatment: PTFE
- Materials: Al-steel
- Dimensions (L×W×H): 600×400×28 mm
- Thickness: δ1.0 mm
- Special Design: 35 cups

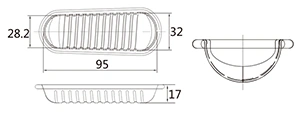

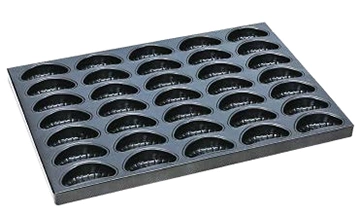

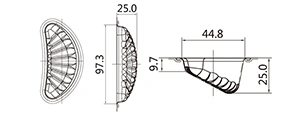

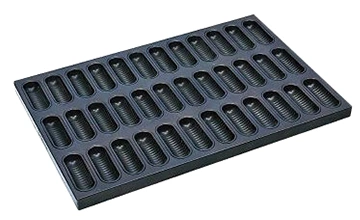

Orange Slice Cake Pan
- Model:
TS3006 - Surface Treatment: Silicon
- Materials: Al-steel
- Dimensions (L×W×H): 600×400×30 mm
- Thickness: δ1.0 mm
- Special Design: 35 cups
Orange Slice Cake Pan
- Model:
TS3017 - Surface Treatment: PTFE
- Materials: Al-steel
- Dimensions (L×W×H): 720×400×30 mm
- Thickness: δ0.8 mm
- Special Design: 36 cups

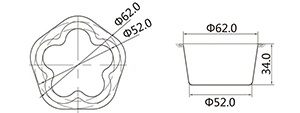

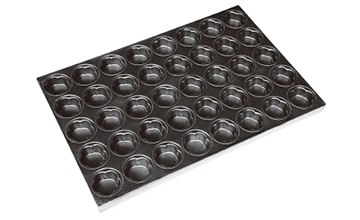

Plum Blossom Cake Pan
- Model:
TS3007 - Surface Treatment: Silicon
- Materials: Al-steel
- Dimensions (L×W×H): 600×400×38 mm
- Thickness: δ1.0 mm
- Special Design: 40 cups

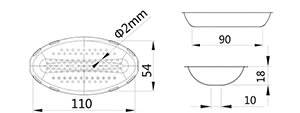

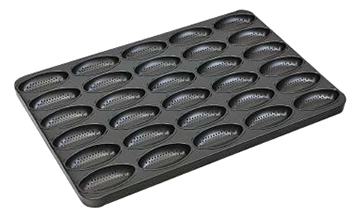

Straight Croissant Pan
- Model:
TS3022 - Surface Treatment: PTFE
- Materials: Al-steel
- Dimensions (L×W×H): 600×400×25 mm
- Thickness: δ1.0 mm
- Special Design: 30 cups

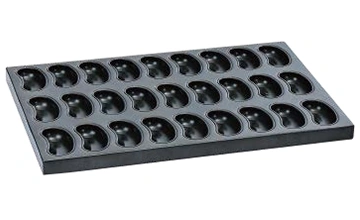

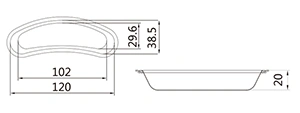

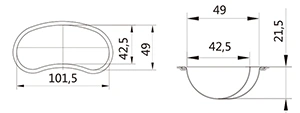

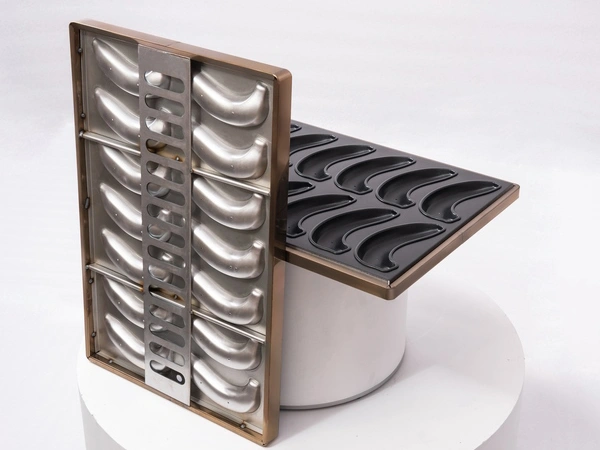

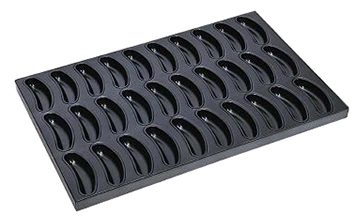

Banana Cake Pan
- Model:
TS3025 - Surface Treatment: PTFE
- Materials: Al-steel
- Dimensions (L×W×H): 600×400×30 mm
- Thickness: δ0.8 mm
- Special Design: 27 cups

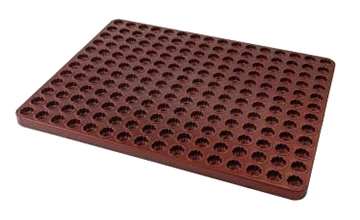

Pumpkin Pan
- Model:
TS32203005 - Surface Treatment: PTFE
- Materials: Al-steel
- Dimensions (L×W×H): 800×600×32 mm
- Thickness: δ1.0 mm
- Special Design: 192 cups
Banana Cake Pan
- Model:
TS3201 - Surface Treatment: Silicon
- Materials: Al-steel
- Dimensions (L×W×H): 720×400×30 mm
- Thickness: δ0.8 mm
- Special Design: 33 cups

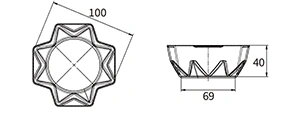

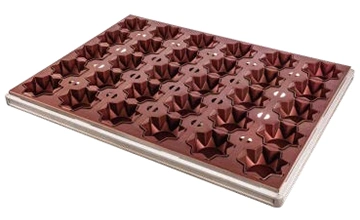

Star Cake Pan
- Model:
TS32207009 - Surface Treatment: PTFE
- Materials: Al-steel
- Dimensions (L×W×H): 800×600×40 mm
- Thickness: δ0.8 mm
- Special Design: 30 cups

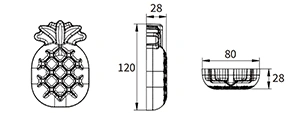

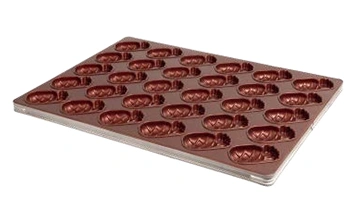

Pineapple Cake Pan
- Model:
TS32311043 - Surface Treatment: PTFE
- Materials: Al-steel
- Dimensions (L×W×H): 800×600×30 mm
- Thickness: δ0.8 mm
- Special Design: 30 cups

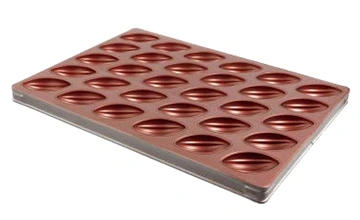

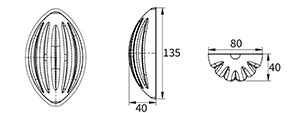

Olive Cake Pan
- Model:
TS32311042 - Surface Treatment: PTFE
- Materials: Al-steel
- Dimensions (L×W×H): 800×600×40 mm
- Thickness: δ0.8 mm
- Special Design: 30 cups

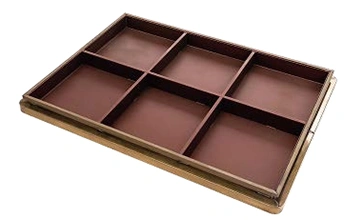

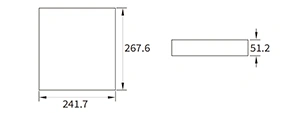

Fresh Yeast Bread Pan
- Model:
TS2397 - Surface Treatment: PTFE
- Materials: Al-steel
- Dimensions (L×W×H): 800×480×25 m
- Thickness: δ1.0 mm
- Special Design: 6 cups

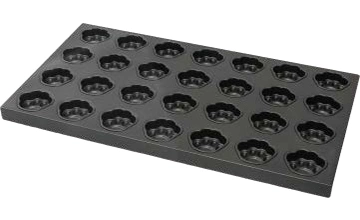

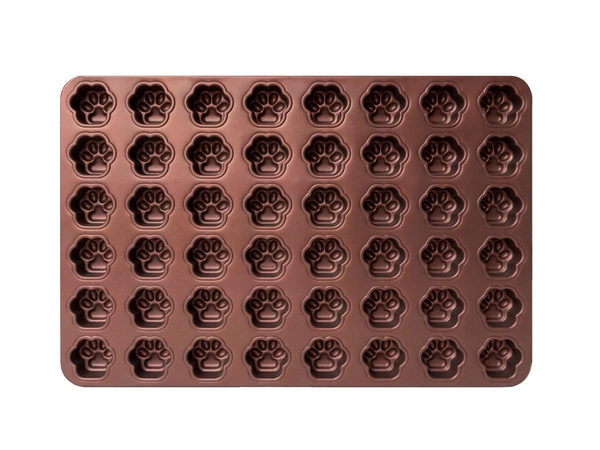

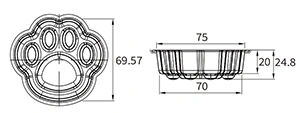

Paw Cake Pan
- Model:
TS31335 - Surface Treatment: PTFE
- Materials: Al-steel
- Dimensions (L×W×H): 720×400×30 mm
- Thickness: δ0.8 mm
- Special Design: 28 cups

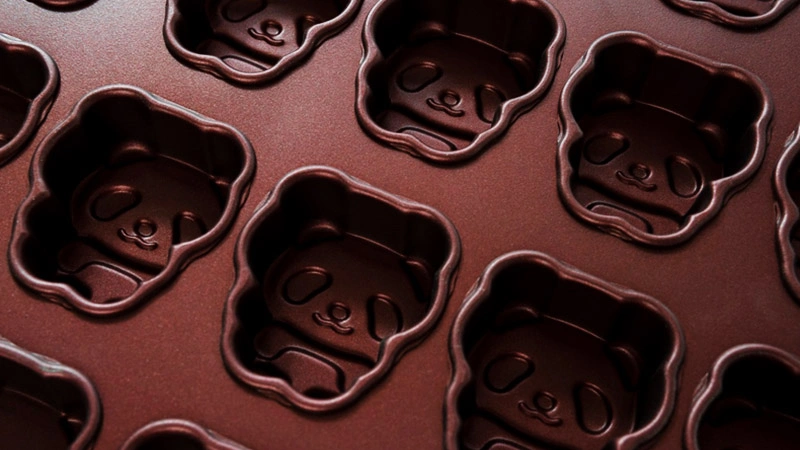

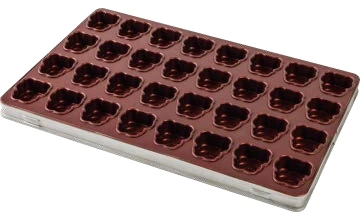

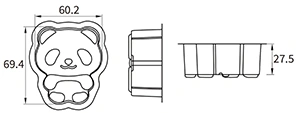

Panda Cake Pan
- Model:
TS32212013 - Surface Treatment: PTFE
- Materials: Al-steel
- Dimensions (L×W×H): 600×400×35 mm
- Thickness: δ0.8 mm
- Special Design: 32 cups

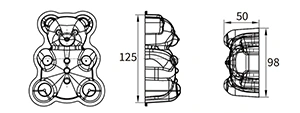

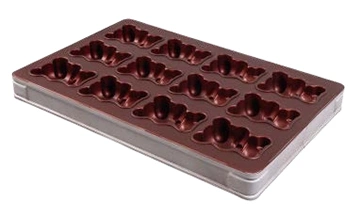

Bear Cake Pan
- Model:
TS32312026 - Surface Treatment: PTFE
- Materials: Al-steel
- Dimensions (L×W×H): 600×400×55 mm
- Thickness: δ0.8 mm
- Special Design: 12 cups

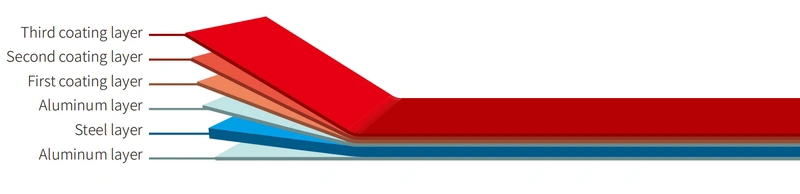

Al-Steel Pans with Coating

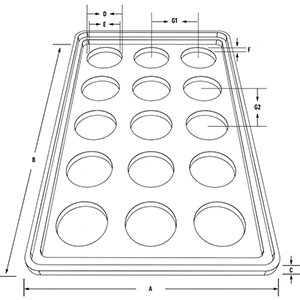

Selection Chart
- A. Overall length
- B. Overall width
- C. Height
- D. Cup top dia.
- E. Cup bottom dia.
- F. Cup depth
- G1. Cup-to-cup length
- G2. Cup-to-cup width
Features
Compatibility
Designed for use in all industrial baking systems and heavy-duty applications.
Energy Efficient
Constructed from high-performance materials for faster heating and cooling while maintaining strength. This reduces oven energy costs, shortens cooling cycles, and increases baking throughput.
Eco-Friendly Design
The unique one-piece drawn construction reduces raw material requirements, minimizing resource consumption.

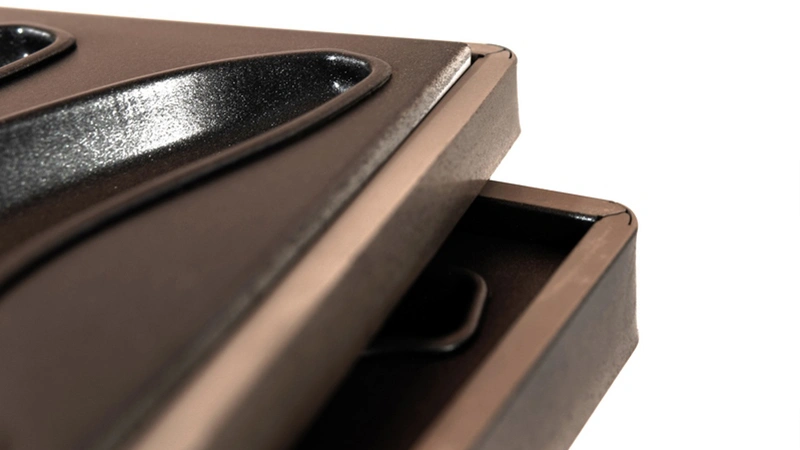

Extended Service Life
T-Shine’s patented burgundy T-ReXL coating lasts 2–3 times longer than conventional PTFE coatings.。
Superior Hygiene & Safety
The seamless, one-piece design eliminates joints and gaps where residue can accumulate, ensuring higher food safety standards.
Contact Us Today
We provide more than just industrial bakeware. We offer comprehensive support—from custom mold design to seamless bakery production line integration.
