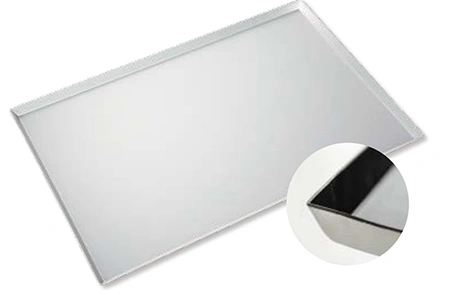

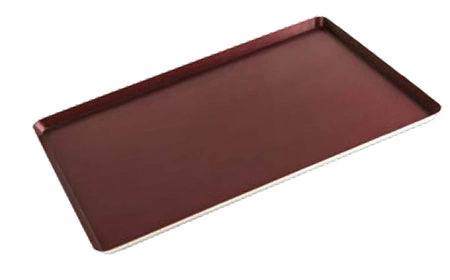

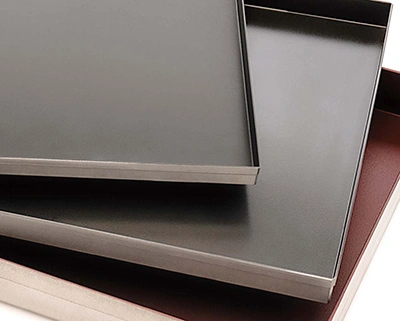

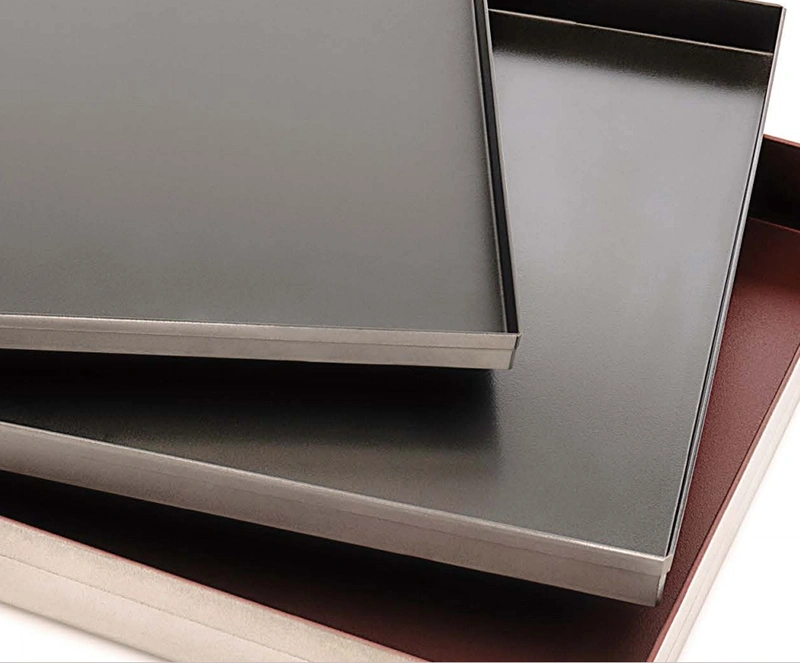

Flat Baking Tray
T-Shine specializes in the manufacturing of custom industrial baking pans for over 20 years. All our baking pans are made from commercial-grade materials and can be customized to your exact size and specification requirements. Surface treatments—including Non-stick Coatings, anodizing, and hard anodizing—are also fully customizable based on your specific application needs.
Material Properties
The flat baking tray is available in aluminized steel, aluminum alloy, and stainless steel.
Produced by hot-dip coating a low-carbon steel substrate with aluminum. This material combines the strength of steel with aluminum's excellent thermal conductivity and heat resistance, offering balanced performance at a competitive cost.
Stainless steel baking trays are made from alloy steel containing iron, chromium, nickel, and other elements, typically using food-grade 304 or 316 stainless steel. They are known for exceptional durability and corrosion resistance.
Fabricated by casting or rolling aluminum with elements like magnesium and silicon. To enhance pure aluminum’s softness and reactivity properties, surface treatments such as anodizing or Non-stick Coatings (e.g., PTFE) are typically applied.
Specifications
| Model | Surface Treatment | Dimensions (L×W×H) | Thickness | Material & Structure | Other Features |
|---|---|---|---|---|---|

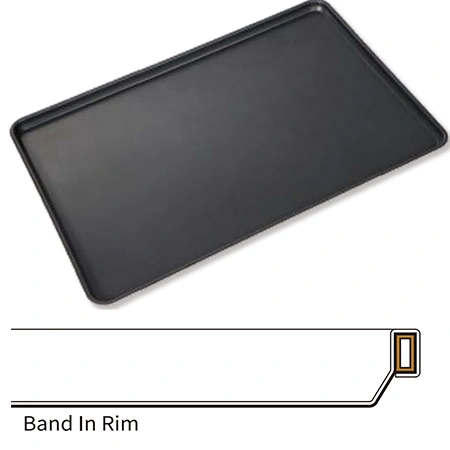

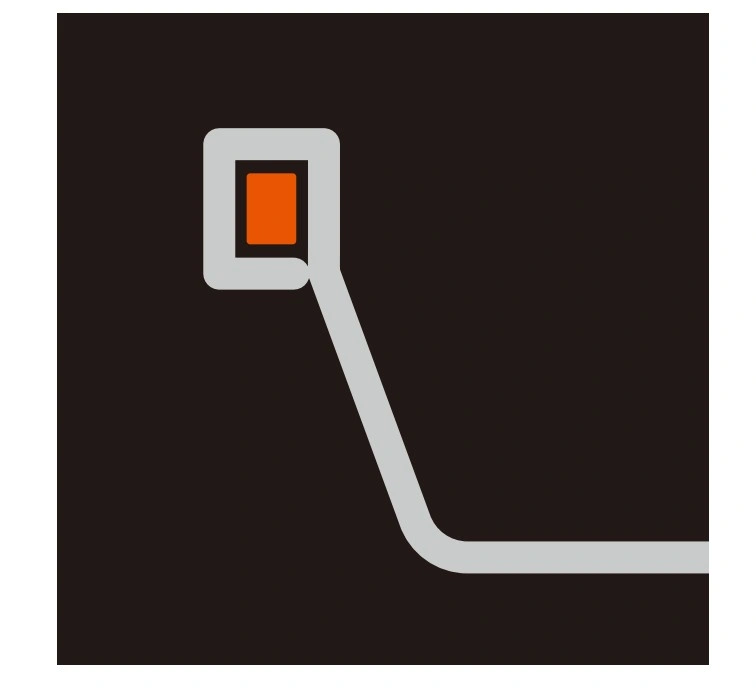

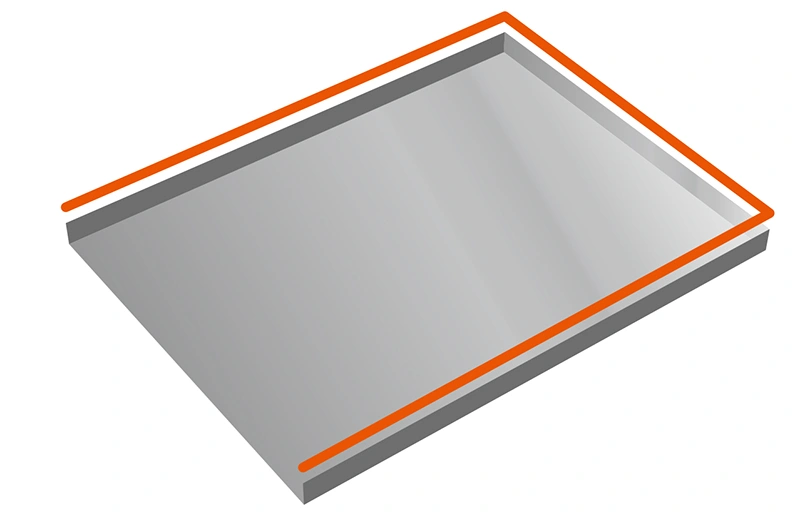

| | PTFE | 600×400×20 mm | δ1.2 mm | Al-alloy, Band In Rim | - |
| | Anodized | ||||
| | Hard Anodized | ||||

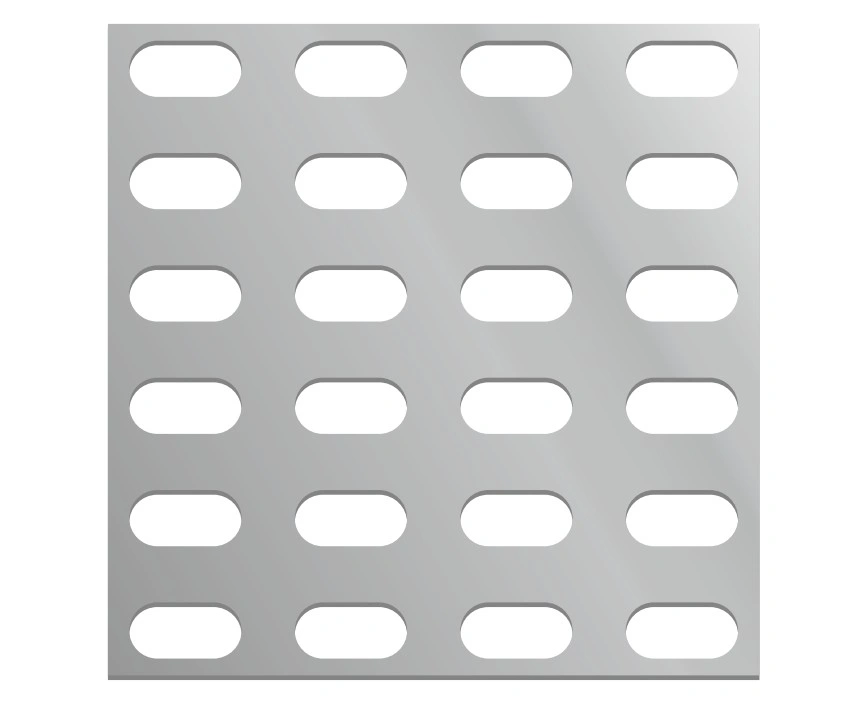

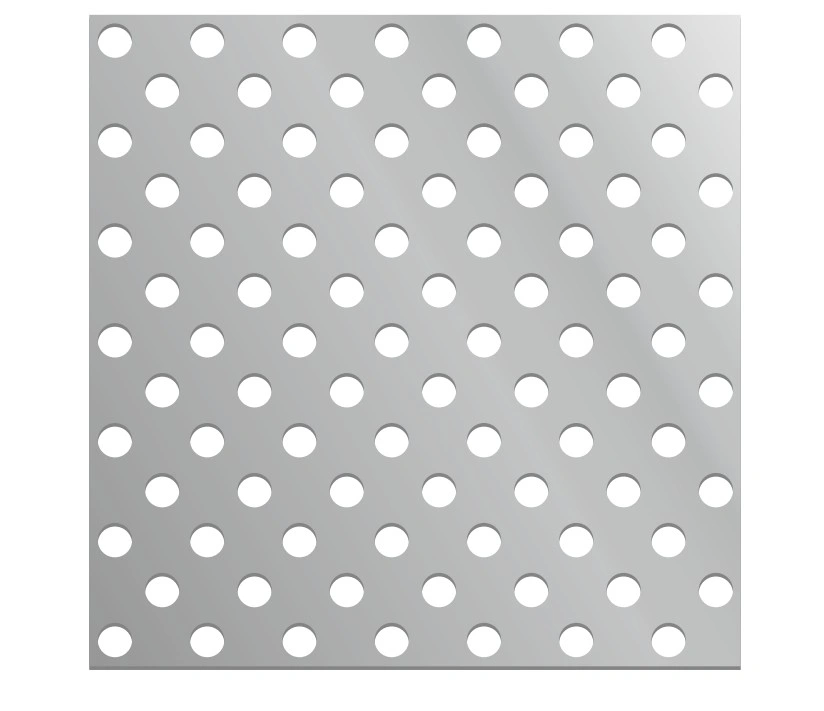

| | PTFE | ⌀3 mm Perforated |
| Model | Surface Treatment | Dimensions (L×W×H) | Thickness | Material & Structure | Other Features |
|---|---|---|---|---|---|

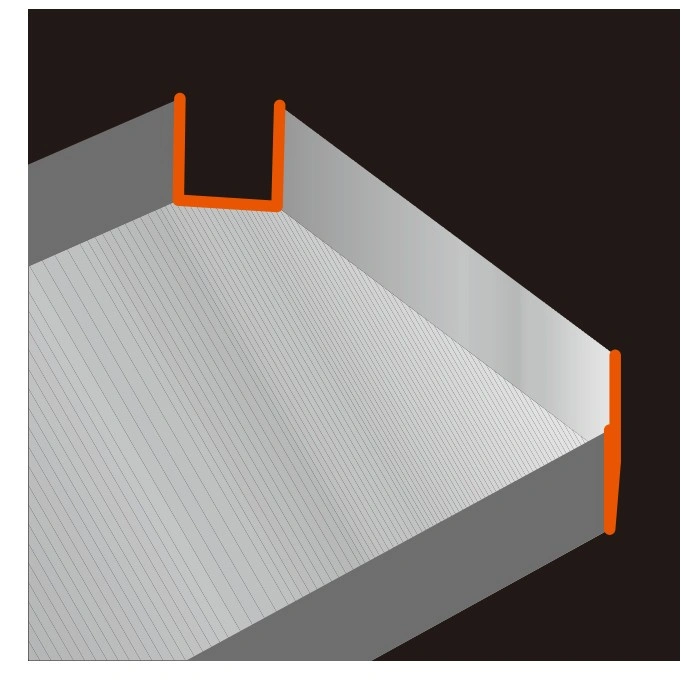

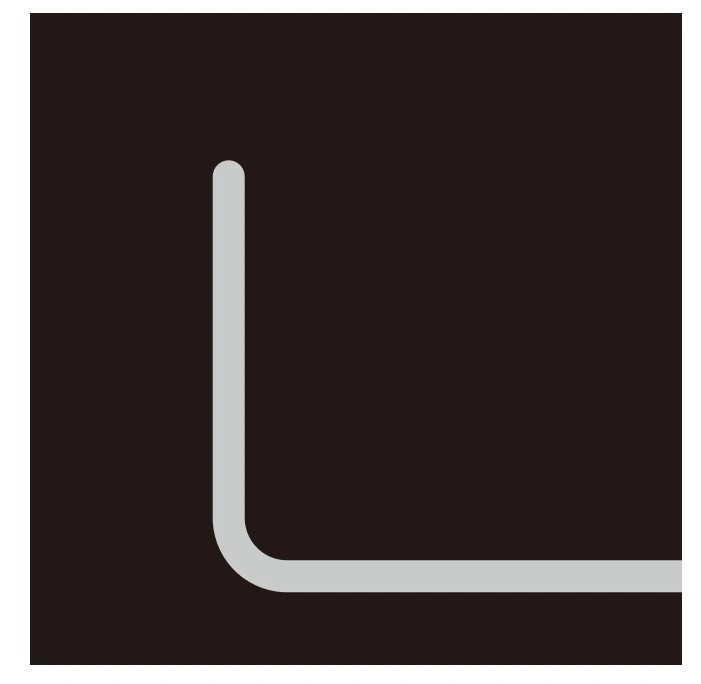

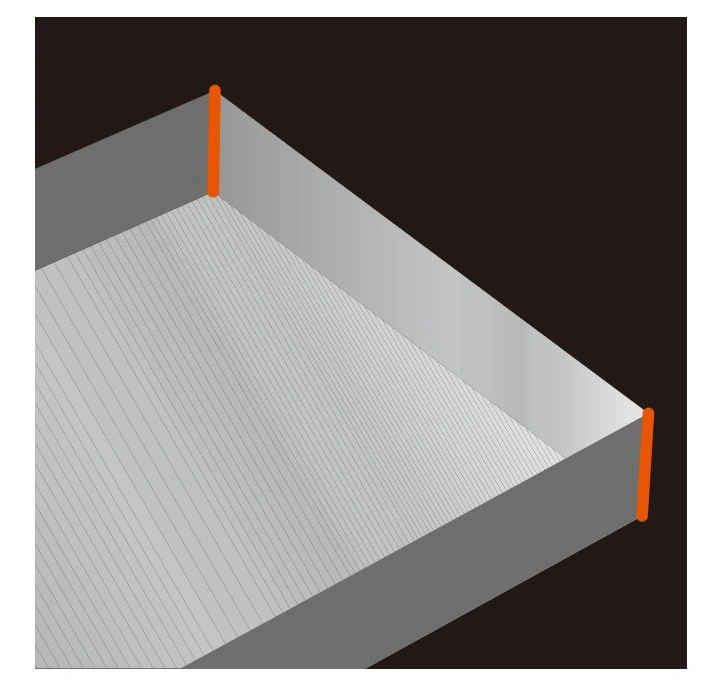

| | PTFE | 600×400×20 mm | δ1.5 mm | Al-alloy, Right Angle | - |
| | Anodized | ⌀3 mm Perforated | |||
| | PTFE | ||||
| | Anodized | ||||
| | PTFE |
| Model | Surface Treatment | Dimensions (L×W×H) | Thickness | Material & Structure | Other Features |
|---|---|---|---|---|---|

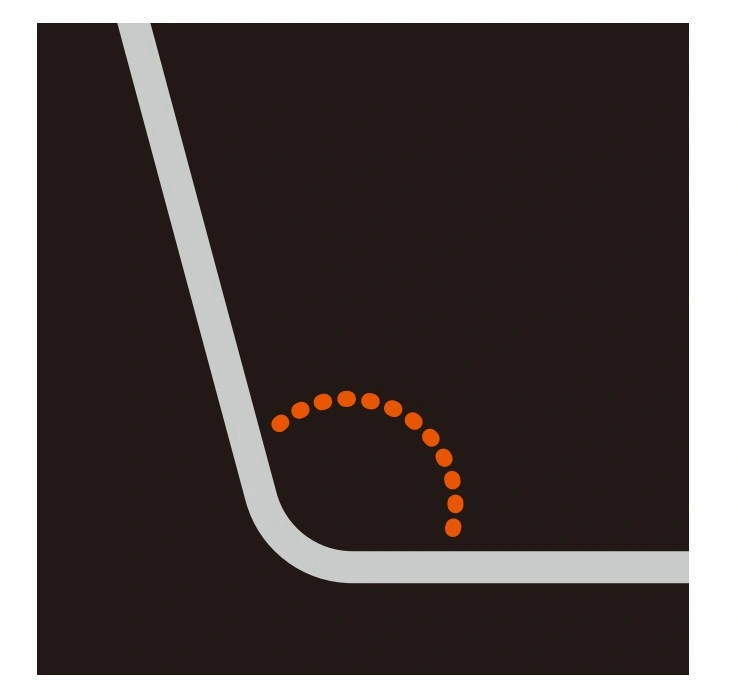

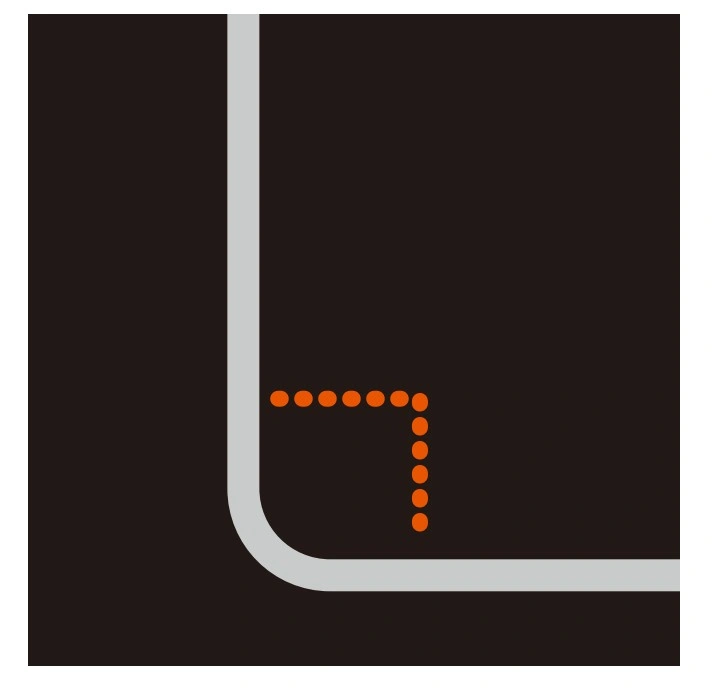

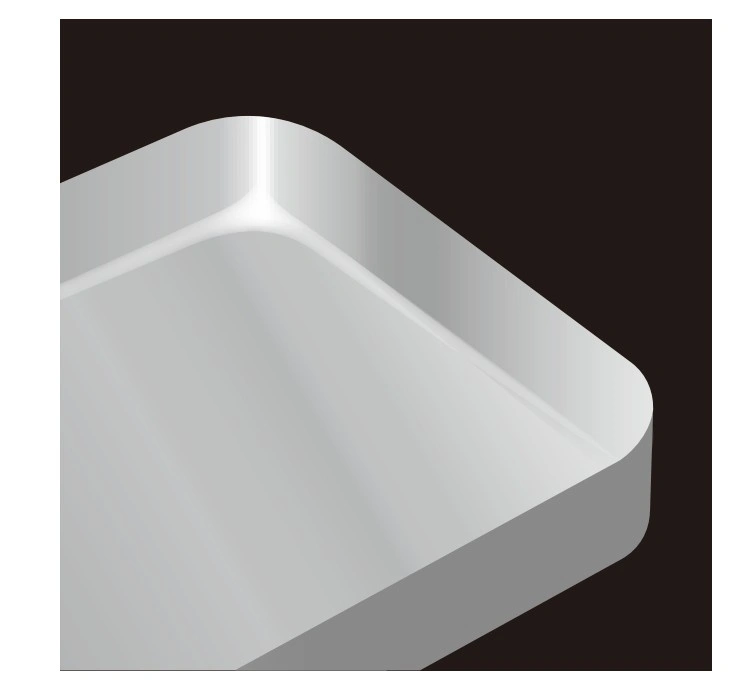

| | PTFE | 600×400×20 mm | δ1.5 mm | Round Corner | ⌀3 mm Perforated |
| | Anodized | ||||

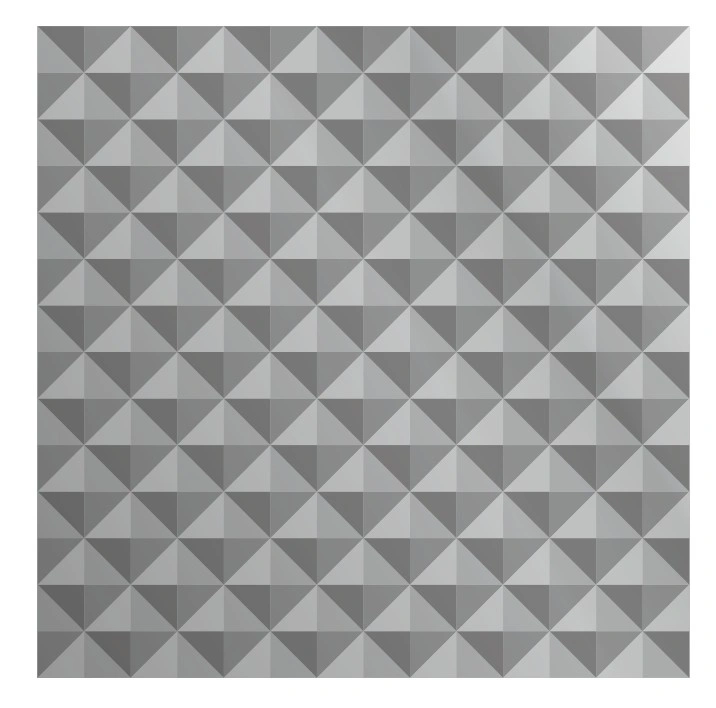

| | PTFE | Corrugated | |||
| | Anodized | ||||
| | PTFE | - | |||
| | Anodized | ||||
| | PTFE | 600×400×12 mm | |||
| | Anodized | ||||
| | PTFE | 660×457×12 mm | δ2.0 mm | ||
| | Anodized | ||||
| | PTFE | 660×457×14 mm | |||
| | Anodized | ||||
| | PTFE | 660×457×12 mm | ⌀2 mm Perforated | ||
| | Anodized | ||||
| | PTFE | 660×457×14 mm | |||
| | Anodized |
| Model | Surface Treatment | Dimensions (L×W×H) | Thickness | Material & Structure |
|---|---|---|---|---|

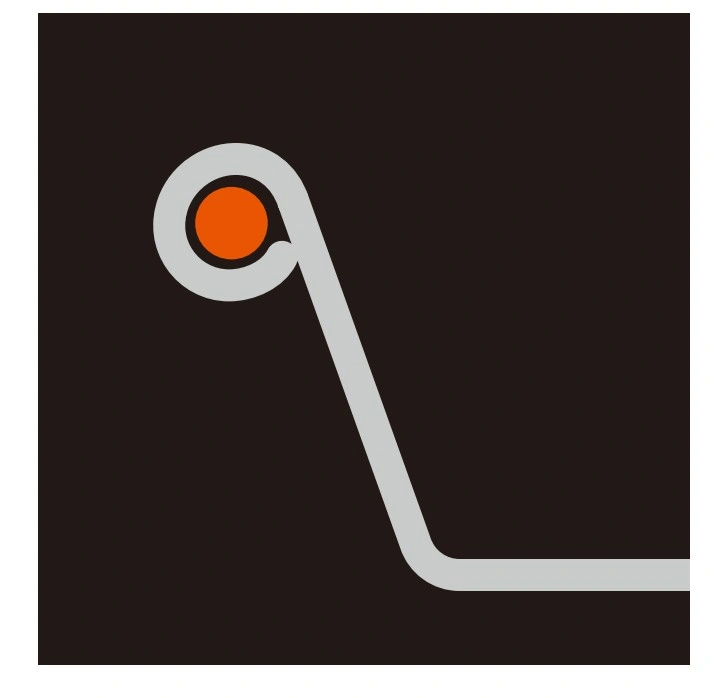

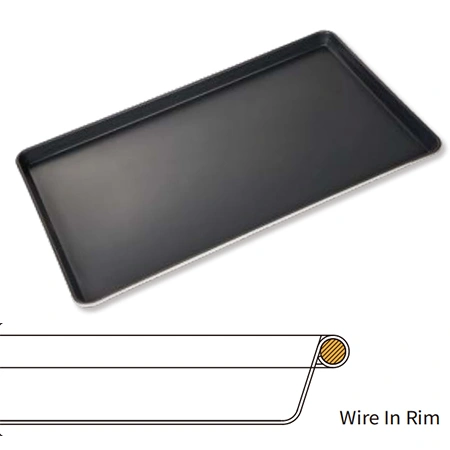

| | PTFE | 600×400×25 mm | δ1.0 mm | Al-alloy, Wire In Rim |
| | Anodized | |||
| | No Coating | 660×458×25 | ||
| | PTFE | |||
| | PTFE | 600×400×25 | δ1.2 mm | |
| | Anodized | δ1.2 mm | ||
| | No Coating | 600×458×25 | δ1.2 mm | |
| | PTFE | δ1.2 mm |
Selection Chart
Features
Compatibility
Designed for use in all industrial baking systems and heavy-duty applications.
Energy Efficient
Constructed from high-performance materials for faster heating and cooling while maintaining strength. This reduces oven energy costs, shortens cooling cycles, and increases baking throughput.
Eco-Friendly Design
The unique one-piece drawn construction reduces raw material requirements, minimizing resource consumption.
Extended Service Life
T-Shine’s patented T-ReXL coating lasts 2–3 times longer than conventional PTFE coatings.。
Superior Hygiene & Safety
The seamless, one-piece design eliminates joints and gaps where residue can accumulate, ensuring higher food safety standards.
Contact Us Today
We provide more than just industrial bakeware. We offer comprehensive support—from custom mold design to seamless bakery production line integration.
