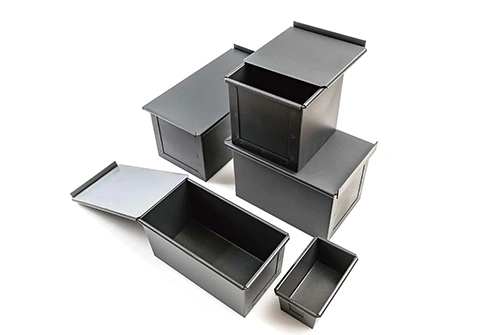

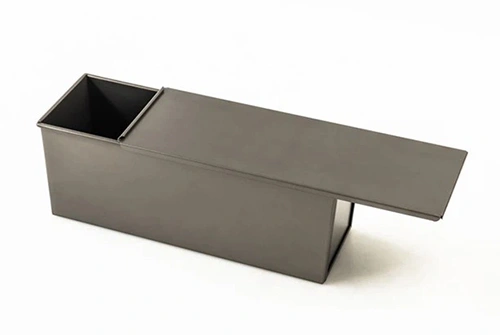

Single Loaf Pan

Single Loaf Pan

T-Shine offers a wide selection of standard-sized single loaf pans and also accommodates custom dimensions. We additionally manufacture corrugated loaf pans, perforated loaf pans, and other structural variations to meet customers’ specific production needs.

Request A Quote

Material Properties

The flat baking tray is available in aluminized steel and aluminum alloy (5052 aluminum-magnesium alloy).

Aluminized steel

Aluminized steel features excellent thermal conductivity, long service life, and strong resistance to deformation. Its material properties ensure even baking, preventing scorching or underbaking. The outstanding drawability of aluminized steel enables the production of one-piece deep-drawn loaf pans, forming the pan in a single stamping process without joints or seams. This seamless structure minimizes residue buildup, facilitates cleaning, and effectively ensures food hygiene.

Aluminum alloy

Aluminum alloy loaf pans are thin and lightweight, offer fast heat transfer, and are easy to use. They are formed using an interlocking (seaming) process, which avoids the instability risks associated with welding and enhances overall structural reliability.

Materials Comparison
ItemAluminized SteelAluminum
WeightHeavyLightweight
Heat ConductivityModerateFast
PriceLowerHigher
FirmnessExcellentGood

Product Sample

Product Sample
Product Sample
Product Sample

Specifications

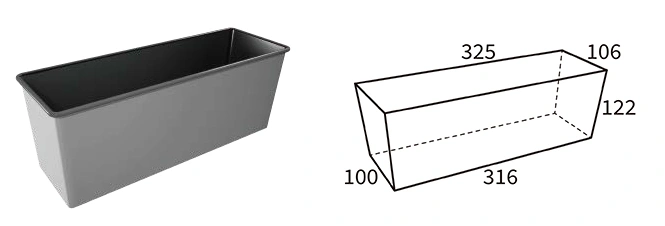

Single Loaf Pan
Model Surface Treatment Material Thickness Special Design Top Dimensions Bottom Dimensions Weight
TS2032 PTFE Al-alloy δ1.0 mm 325×106×122 mm 316×100 mm 900 g
TS2034 PTFE Al-alloy δ1.0 mm Corrugated
TS2046 PTFE Al-alloy δ1.1 mm
Lid Hard Anode δ1.1 mm

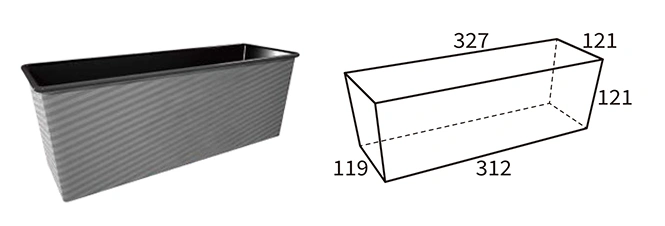

Single Loaf Pan
Model Surface Treatment Material Thickness Special Design Top Dimensions Bottom Dimensions Weight
TS2036 PTFE Al-alloy δ1.0 mm - 327×121×121 mm 312×119 mm 1000 g
TS2038 PTFE Al-alloy δ1.0 mm Corrugated
TS2047 PTFE Al-alloy δ1.1 mm -
Lid Hard Anode - δ1.1 mm -

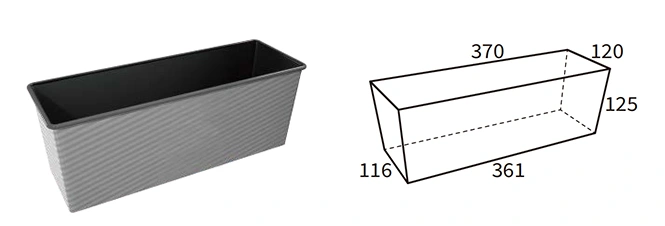

Single Loaf Pan
Model Surface Treatment Material Thickness Special Design Top Dimensions Bottom Dimensions Weight
TS2040 PTFE Al-alloy δ1.0 mm 370×120×125 mm 361×116 mm 1200 g
TS2042 PTFE Al-alloy δ1.0 mm Corrugated
TS2048 PTFE Al-alloy δ1.1 mm
Lid Hard Anode -

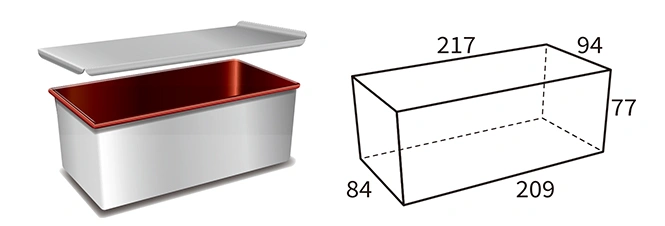

Single Loaf Pan
Model Surface Treatment Material Thickness Special Design Top Dimensions Bottom Dimensions Weight
TS2009 No Coating Al-alloy δ1.0 mm 217×94×77 mm 209×84 mm 385 g
TS2010 PTFE Al-alloy δ1.0 mm
TS2011 No Coating Al-alloy δ1.0 mm
TS2012 PTFE Al-alloy δ1.0 mm Corrugated

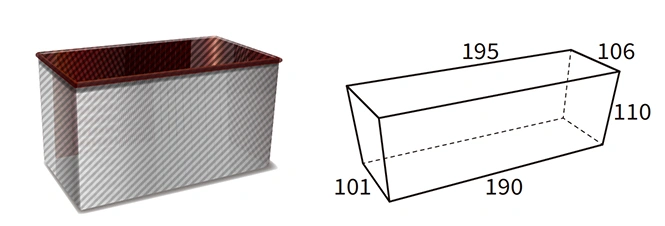

Single Loaf Pan
Model Surface Treatment Material Thickness Special Design Top Dimensions Bottom Dimensions Weight
TS2601 PTFE Al-steel δ0.8 mm Corrugated 195×106×110 mm 190×101×110 mm 450 g

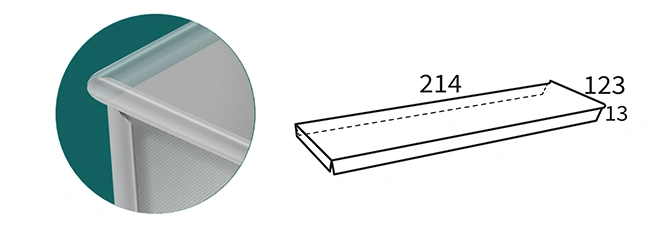

Lid of Bread Pan

Single Loaf Pan
Model Surface Treatment Material Thickness Special Design Dimensions Weight
TS2013-G No Coating Al-alloy δ1.0 mm 214×123×13 mm 450g
TS2014-G PTFE Al-alloy δ1.0 mm
TS2019-G No Coating Al-alloy δ1.0 mm
TS2020-G PTFE Al-alloy δ1.0 mm Corrugated
TS2021-G Golden Coating Al-alloy δ1.0 mm

Selection Chart

Customized Service
Single Loaf Pan Type
Single loaf pan
Single loaf pan

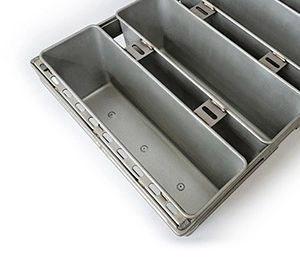

Loaf pan sets
Loaf pan sets
Material
Al-alloy Al-steel
Thickness
0.8 mm 1.0 mm
Process
Main Frame
Single loaf pan
Loaf pan without lid
Single loaf pan
Loaf pan with lid
Shape
Seamless pan
Seamless pan
Folded pan
Folded pan
Welded pan
Welded pan
Side Perforated
Side Perforated
Bottom Perforated
Bottom Perforated
Surface
Flat
Flat
Oblique corrugated
Oblique corrugated
Frame
Single frame
Single frame
Double frames
Double frames
Coating
No coating T-ReXL PTFE Silicon

Features

Compatibility

Designed for use in all industrial baking systems and heavy-duty applications.

Energy Efficient

Constructed from high-performance materials for faster heating and cooling while maintaining strength. This reduces oven energy costs, shortens cooling cycles, and increases baking throughput.

Eco-Friendly Design

The unique one-piece drawn construction reduces raw material requirements, minimizing resource consumption.

Extended Service Life

T-Shine’s patented burgundy T-ReXL coating lasts 2–3 times longer than conventional PTFE coatings.。

Superior Hygiene & Safety

The seamless, one-piece design eliminates joints and gaps where residue can accumulate, ensuring higher food safety standards.
